KunLun i6800 Modular Automatic Chemiluminescence Immunoassay System

High Throughput · High Performance

Fast

Throughput of up to 600 tests per hour
First result in 10 minutes

Reliability

Sample contamination rate<0.1ppm
Reagent automatic loading/unloading

Innovative Sample management Unit

Basket-type Loading Transport

Single/dual sample compartments...

Flexible Three Tracks

Priority for emergency samples, Loading Transport completed within 1 minute...

Sample Probe

Circular vacuum cleaning

Low carry-over contamination rate

Reagent Probe

Two-stage high-speed movement

Operating System

Industry-leading software and hardware control platform ensures
real-time system control

Reagent Unit

40 reagent positions

Automatic magnetic bead mixing

Automatic reagent information identification

Reaction Cup Hopper

Dump-type reaction cup loading

Automatic cup
arrangement by the
instrument

Supports a minimum of 1500 reaction cups

Consumable
Management Area

One-click online
replacement of
consumables

Solid-liquid separation

UV disinfection of waste bin

Magnetic Separation
Unit

Three-stage magnetic separation and washing

Incubator Disk

Incubation temperature 37±0.3°C

High Speed Experience

600T/H Single Module

2000T/H Maximum Online Throughput

Single Needle Flying Line, Single Reagent Needle Design

World-leading ultra-precision linear slide rail technology supports high-speed movement of the reagent needle, achieving higher reagent dispensing precision

Breakthrough innovative three-stage magnetic separation design
Magnetic separation and washing cycle shortened to 6 seconds

Intelligent sample scheduling, priority for emergency samples
Emergency Loading Transport completed within 1 minute

Integrated design reduces sample transfer time
First shortest report time 10 minutes

Efficient Design

Technological Innovation, Automation & Intelligence

Hands-free operation, no waiting required

Simplified operation, truly ready-to-install

Truly online automatic reagent loading and unloading

Open the compartment door

Take out the empty reagent

Insert new reagent

Close the compartment door

Flexible Expansion

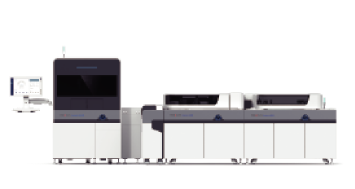

P-Cell

TLA (P-Cell Version)

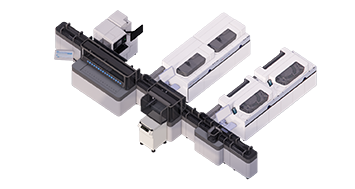

KunLun TLA 9000

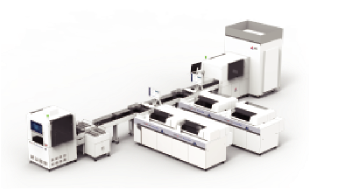

Intelligent Biochemical Immune Pipeline (Advanced Version)

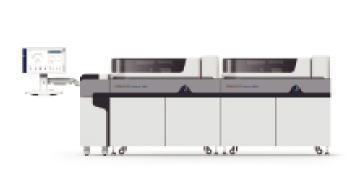

KunLun i6800 Dual Module

KunLun i6800 multi-module chemiluminescence immunoassay system meets high-speed testing needs, supports up to four online units

KunLun TLA 6000

Intelligent Biochemical Immune Pipeline (Standard Version)
