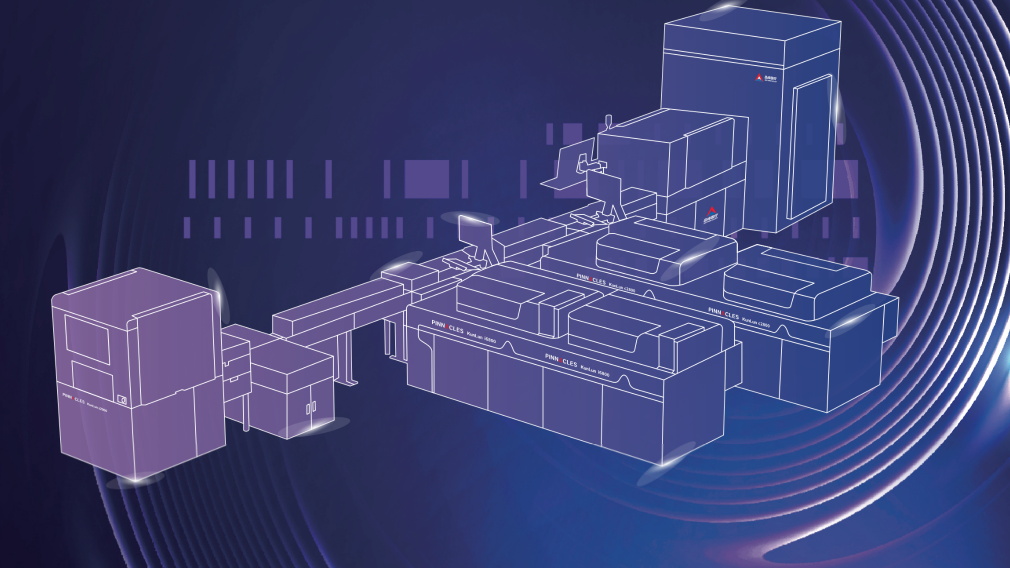

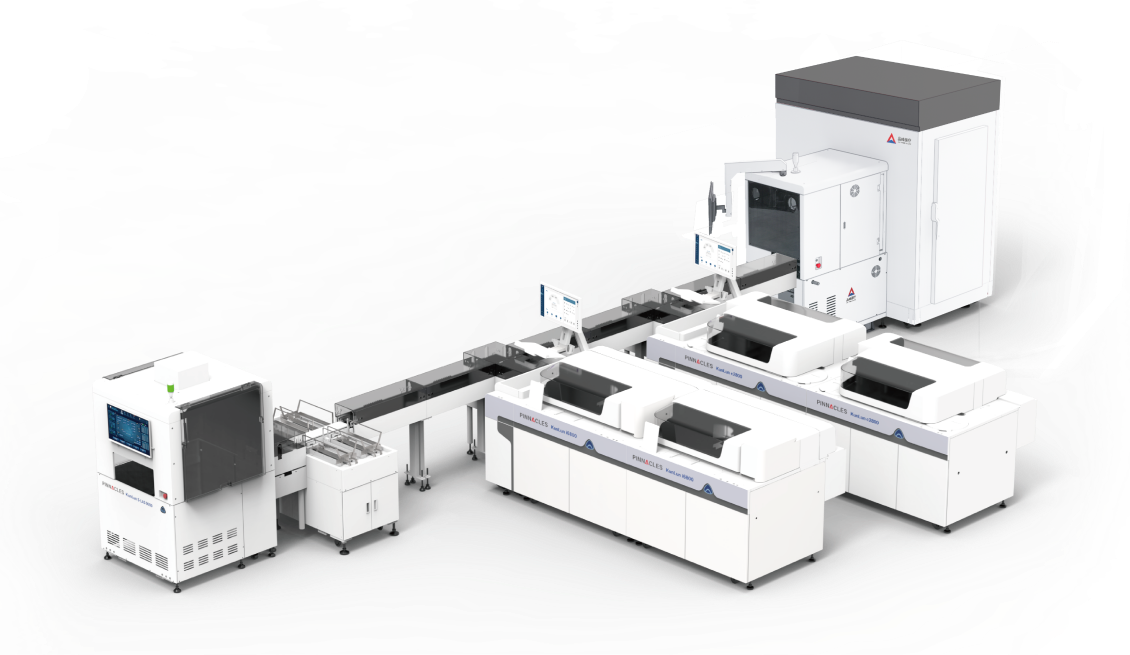

KunLun TLA 8000/9000 Lab Automation System

Completely domestic production

All modules, such as biochemistry, luminous immunity and sample processing system, are independently developed and produced in China

Open and Compatible

The software and hardware interfaces of the analysis modules of mainstream IVD manufacturers at home and abroad have been opened to achieve multi-brand compatibility

Intelligent and Efficient

The integrated design of sample pre-processing and post-processing modules has the advantages of fast sample processing and analysis, small footprint and super high -efficiency per square meter

Cost-effective

With flexibility and high cost performance,it provides ideal and applicable lab automation system solutions for medical laboratory of medical institutions at all levels

KunLun TLA

8000

KunLun TLA 8000 Automated Sample Processing System

Buffer platform for test tube rack basket

Sample Transport Track

KunLun TLA

9000

KunLun TLA 8000 Automated Sample Processing System

Buffer platform for test tube rack basket

Sample transmission track

BIM-DGJG Recapping & Recycling Module

BIM AUTOMATION-H Sample Post-Analytical System

KunLun TLA 8000

Automated Sample Processing System

Buffer platform for test tube rack basket

Sample Transport Track

KunLun i6800

Automatic Chemiluminescence Immunoassay analyzer

KunLun c2800

Modular Automatic Clinical Chemistry Analysis System

BIM-DGJG

Recycling and capping module

BIM AUTOMATION-H

Sample post-processing system

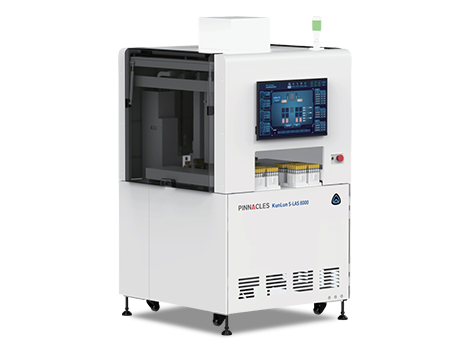

KunLun TLA 8000

Automated Sample Processing System

Centrifugation, decapping, serum level detection, native rack loading

Aerosol purifier for automatic aerosol removal

Fully electric drive (no pneumatics) – quiet & reliable

Overall throughput: 500 tubes/h

Centrifugation with native rack loading: 600 tubes/h

Power: 2.5 kVA

Test tube rack basket buffer platform

Batch testing can reach 600T/H

First result in 10 minutes

40 reagent positions

Reagent online automatic loading

Can be expanded to 4 modules

Energy consumption reduction>40%

Power: 2.0KVA

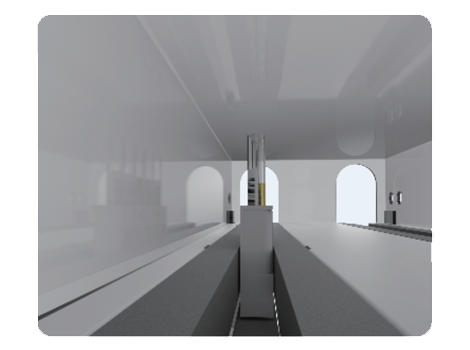

Sample transmission track

Electric drive — no air pump system required, silent transport, fewer failures, lower maintenance costs

Transport speed: >13 cm/s

Rack‑based transport — good compatibility, no compromise on overall efficiency

Power: 0.1 kVA

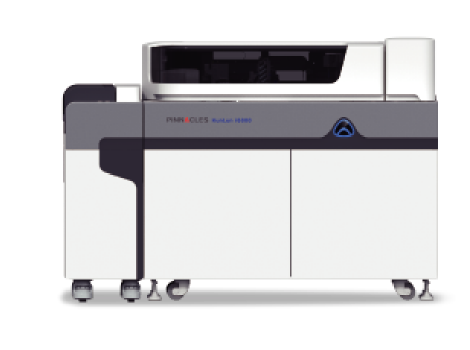

KunLun i6800

Automatic Chemiluminescence Immunoassay analyzer

up to 600 T/H

First result in 10 minutes

40 reagent positions

Continuous access to breakthrough assays

Expandable to 4 modules

Energy consumption reduction >40%

Power: 2.0 kVA

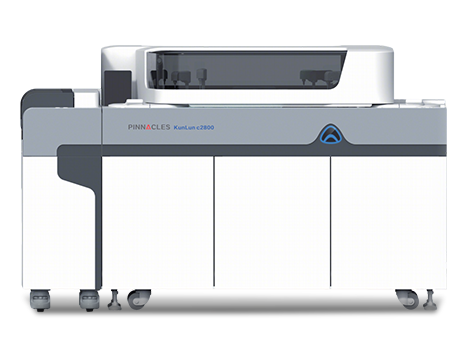

KunLun c2800

Modular Automatic Clinical Chemistry Analysis System

one-unit up to 2,000 photometric T/H ;ISE (Optional) Single-flow cell up to1,200 T/H;

Up to 204 reagent positions

Expandable to 4 modules

Footprint only 2.3 m², A breakthrough of 1,131- 1,391 T/H/㎡

Energy-saving, water-saving, and consumables-saving (minimum reaction volume: 70 μl)

Power: 3.0 kVA

BIM-DGJG

Recycling and capping module

Automatically recaps tested samples, reducing manual labor

Prevents lab contamination, operator exposure, and refrigerator damage from serum vapor

Builds sample database for easy tracking and retrieval

Throughput: 1,000 tubes/H

Power: 1.2 kVA

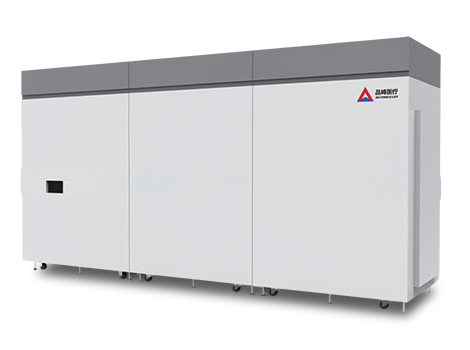

BIM AUTOMATION-H

Sample post-processing system

Tested samples are automatically transferred from the sample track to the refrigerator module. Three storage capacities are available based on hospital sample volume: 8,000, 18,000, and 28,000 tubes

Program memory enables precise sample positioning within the refrigerator, monitors sample lifecycle, and automatically discards expired samples

Supports overtemperature alarm, fault alarm, and remote alarm functions

Power: 2.0 kVA

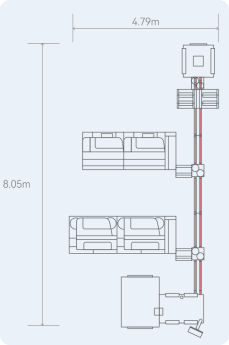

Flexible expansion configurations

Supports I-shaped, L-shaped, U-shaped, and hybrid connection layouts to meet spatial requirements

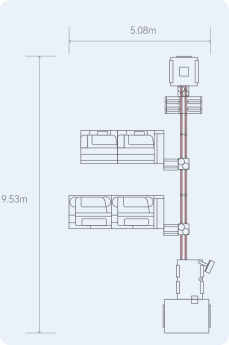

Floor space of about 47.9 ㎡

I type

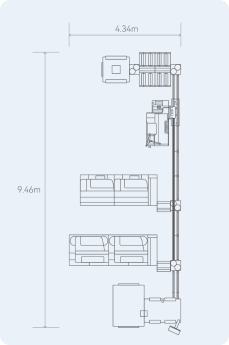

Floor space of about 38.5 ㎡

L type

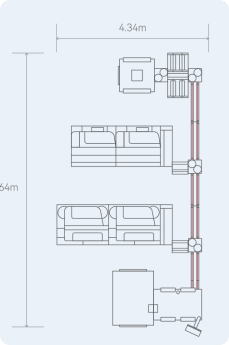

Floor space of about 33.1 ㎡

U type

Floor space of about 41.1 ㎡
