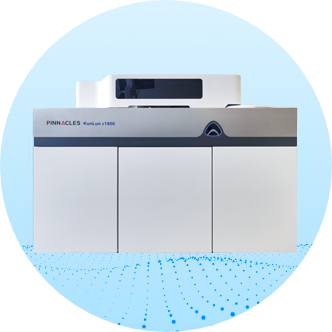

KunLun c1800 Automatic Clinical Chemistry Analysis System
Mid-Speed Footprint · High-Speed Performance
KunLun c1800 Automatic Clinical Chemistry Analysis System

Based on the high-speed KunLun c2800, Pinnacles now launches the KunLun c1800 Automatic Clinical Chemistry Analysis System — a mid‑speed system that delivers 1,000 tests/hour with the footprint of a low‑speed instrument. It combines high performance, precision, versatility, and compactness into one premium solution.

High Efficiency
1000 T/H
ISE: 600 T/H
Precision
Minimum reaction volume: 70 μl
Minimum sample volume: 1 μl (in increments)
Versatility
204 reagent positions
16 reaction wavelengths
Compact
Instrument dimensions
1460 (L) x 820 (W) x 1100 (H) mm

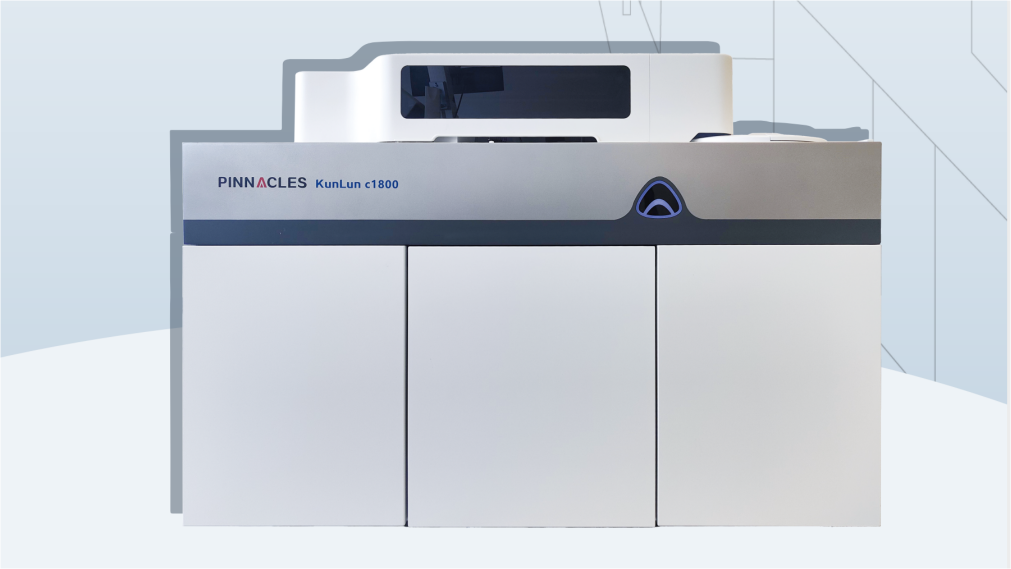

KunLun c1800


组 41823-1.png
Sample Management Unit
Disc-type loading, batch loading
with sample racks, and 3 fixed STAT positions
168 sample positions, including 28 refrigerated sample positions (optional)
Supports external sample input track
≥5 million fatigue test cycles for sample probe arm


组 41822-1.png
User-Friendly Reagent Disk
204 reagent positions, supports loading/unloading
without stopping the system
Washing unit is separate from the deck and does not occupy reagent positions
Supports cleaning with acid and alkaline solutions
≥5 million fatigue test cycles for reagent probe arm


组 41827-1.png
Stable and efficient mixing and washing system
≥5 million fatigue test cycles for mixing probe and washing probe
Efficient and intelligent mixing system
9-stage, 9-needle warm water washing to reduce carryover rate


组 41829-1.png
Stable detection system
Constant temperature water bath heating at 37±0.1°C
≥5 million fatigue test cycles for reaction disk


组 41825-1.png
Smart Light Source
Supports automatic sleep and wake‑up function
Future Diagnostics Solutions for Today
With innovation in its DNA and customer needs in its heart, Pinnacles continues to expand i-Lab's open ecosystem and drive the transformation of laboratory medicine.
